Capacity (W)2812
-
Net Width x Depth x Height (mm)805*200*292
-
Capacity (BTU)9600
-
RefrigerantR32 Non-Inverter
Compressor
-
Type:Non Inverter
Model
-
Indoor/Outdoor:HSU-10LPB21
Capacity
-
Capacity (W):2812
-
Capacity (BTU):9600
-
Power input (W) Cooling:845
-
CSPF:3.40
-
Star Rating:3
-
Running current (A) Cooling:3.72
-
Power supply (Ph/V/Hz):1/220-240/50
-
Air circulation (m³/h):680
-
Moisture removal (10¯³m³/h):1.4
-
Refrigerant:R32
-
Refrigerant pipe (mm) Liquid side diameter:6.35
-
Refrigerant pipe (mm) Gas side diameter:9.52
INDOOR
-
Net dimension (mm) W/D/H:805/200/292
-
Package dimension (mm) W/D/H:874/270/363
-
Net weight (kg):9.0
-
Gross weight (kg):11.0
-
Noise [dB(A)] (Hi/Mid/Lo/So):40/37/34/29

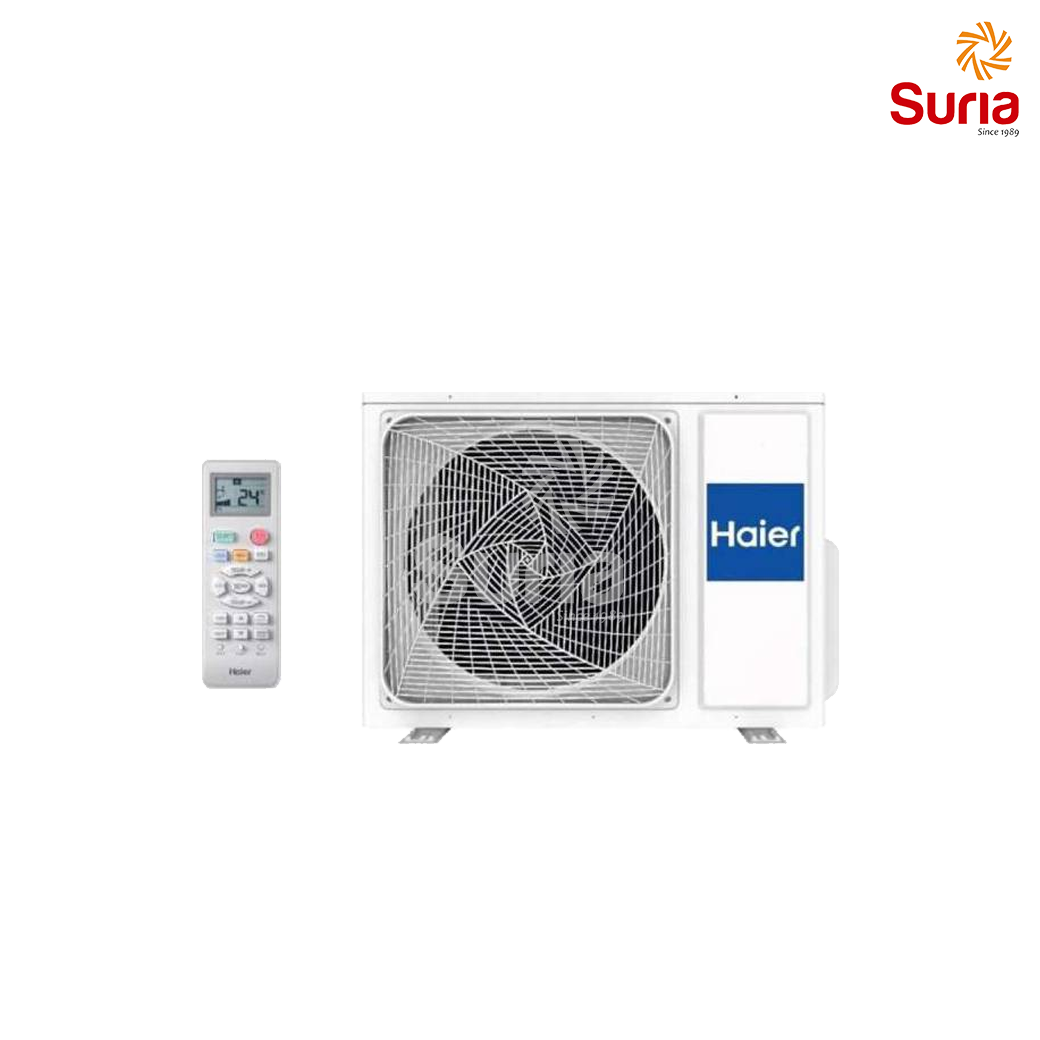

OUTDOOR
-
Net dimension (mm):695/245/430
-
Package dimension (mm):810/354/490
-
Net Weight (kg):22.5
-
Gross Weight (kg):25.5
-
Noise [dB(A)]:53
-
Max Pipe Length(m):15
-
Max Pipe Height(m):10
-
Chargless Piping Length(m):5
-
Amount of additional Refrigerant (g):20
-
Amount of Gas(g):430
-
Power Supply:indoor
-
Metering Device:capillary tube
