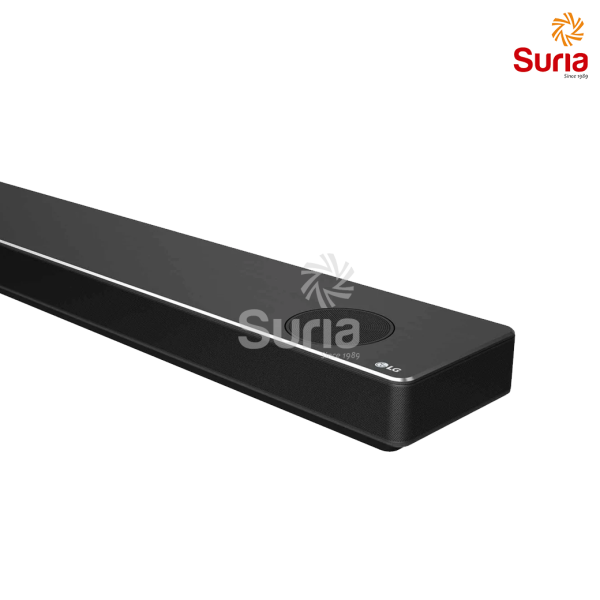

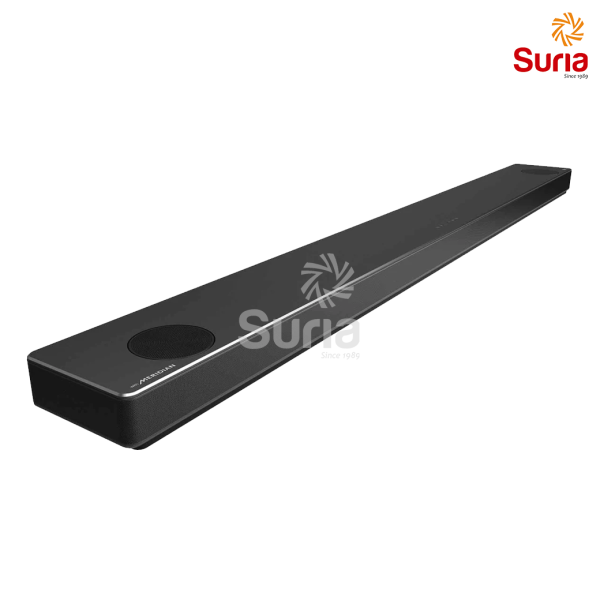

LG Sound Bar SN11R
Truly Breathtaking Audio Experience
-
with MERIDIAN
Elevates sound and creates a wide soundstage with advanced signal processing technology
-
Dolby Vision & Dolby Atmos
Powerful and more realistic audio entertainment
-
7.1.4 ch Surround System
For the premium home theater experience
-
High Resolution Audio
For accurate sound of highest quality
LG Sound Bar SN11R
The Best Sound for Your Cinematic Experience
with MERIDIAN
MERIDIAN Technology for Exceptional Sound
LG Sound Bar SN11R now comes with Meridian’s advanced digital signal processing technology. Experience the quality of ear-level sound and a wide sound stage.
The Pioneers of High Resolution Audio
In collaboration with Meridian, LG brings high quality sound into your home. Meridian has delivered innovative, elegant high-performance audio solutions since 1977, and is today’s leading authority on Digital Signal Processing technology.
Dolby Vision & Dolby Atmos
Hear the Difference with Immersive 3D Sound
The LG Sound Bar SN11R meets Dolby Vision, Dolby Atmos and DTS:X to transform your home into a theater, for the most immersive viewing of all your favorite movies.
Take Sound to Greater Heights
Dolby Atmos takes surround sound to a higher level with a third overhead dimension. By tracking audio objects moving within a scene, the new LG Sound Bars delivers aerial sounds from all directions, up and down, right and left for to simulate the cinematic audio experience.

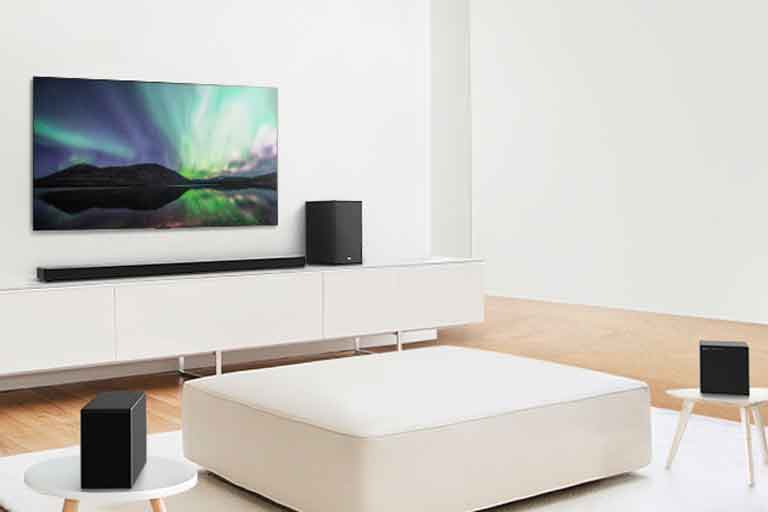

Wireless Rear Up-Firing Speaker
Fill the Room with the Ultimate Cinematic Surround Sound
The LG Sound Bar SN11R supports 7.1.4 ch output with an embedded wireless up-firing rear speaker. Always watch TV with the most immersive sound.
High Resolution Audio
Listen to Uncomparable Sound
High Resolution Audio delivers 192kHz sampling rates and 24bit depth, for more accurate sound and a more enjoyable listening experience.
AI Room Calibration
Sound Suited to Your Space
Determine the best soundbar configuration for your space. Install knowing it also corrects fine sound distortion from objects in your room in only 15 seconds.
*AI Room Calibration is a automatic sound tuning technology that compensates for the environment the Sound Bar is placed, by using Algorithms that improve the Sound Bar’s sonic performance.
AI Sound Pro
Adaptive Audio for Everything You Watch
AI Sound Pro automatically analyzes content to instantly optimize audio settings for what’s playing. Catch every detail with crystal clear dialogue or more punchy powerful action, depending on the genre.
eARC
Fully Enjoy Entertainment the Best Way Possible
HDMI eARC (Enhanced Audio Return Channel) allows lossless transmission of uncompressed 5.1 ch and 7.1 ch audio, and even HBR(High Bit Rate) audio such as Dolby Atmos® and DTS: X® on compatible TVs.
*Image is simulated.
Connectivity
Connect More Conveniently
Add Wi-Fi and Bluetooth® connectivity to your audio setup, or conveniently connect and play using optical or dual HDMI cables.
SIZE(W X H X D, MM)
-
- Main (w/ Foot )
- 1443 x 63 x 146
- Matching TV size (`20 New)
- 55 ~ 65 inch
-
- Addtional Foot (H) mm
- No
- Wireless Box
- No
-
- Rear Speaker
- 130 x 211.5 x 191.2
- Subwoofer
- 221.0 x 390.0 x 312.8
MATERIAL
-
- Main – Front / Top / Bottom
- Metal Grille/Mold/Mold
- Wireless Box – Front / Body
- No / No
-
- Wireless Speaker – Front / Body
- Metal (+Top) / Mold
- Subwoofer – Front / Body
- Jersey / Wood
WEIGHT(KG)
-
- Main
- 7.2Kg
- Wireless Box
- No
-
- Rear Speaker (2EA)
- 5.2Kg
- Subwoofer
- 7.8Kg
-
- Gross Weight
- 25.3Kg
CARTON BOX
-
- Size (W x H x D) mm
- 1516 x 284 x 472
- Type
- TipOn
-
- Color
- White(1)+Yellow
NUMBER OF CHANNELS
-
- Number of channels
- 7.1.4ch
NO. OF SPEAKER UNIT
-
- Number of speakers
- 15EA
CONNECTIVITY_GENERAL
-
- Audio Input (3.5Ø)
- No
- Optical
- Yes(1)
-
- HDMI 1.4 (HDCP 1.4) – In / Out
- No / No
- HDMI 2.1 (HDCP 2.3) – In / Out
- YES(2) / YES(1)
-
- HDR10 / HDR10+
- Yes / No
- Dolby Vision
- YES (TBD)
-
- USB
- Yes
- FM Radio
- No
CONNECTIVITY_WIRELESS
-
- Bluetooth Version
- 5.0
- Bluetooth Codec – SBC / AAC
- Yes / No
-
- Wi-Fi (2.4G / 5G)
- Yes
- Wireless Rear ready
- Yes (1:1)
DISPLAY INFORMATION
-
- Display Type
- LCD (5 char.)
- LED Indicator Color
- No
-
- AI Indicatior
- No
HI-RESOLUTION AUDIO
-
- Sampling – “24bit/192kHz” / “24bit/96kHz”
- Yes / Yes
- Upbit/upsampling – “24bit/192kHz” / “24bit/96kHz”
- Yes / No
SOUND EFFECT
-
- AI Sound Pro
- Yes
- Standard
- Yes (w/ Meridian)
-
- Music
- Yes
- Bass Blast / Bass Blast +
- Yes
-
- Movie (Dolby Surround)
- Yes
- Dolby ATMOS
- Yes
-
- DTS:X
- Yes
- DTS Virtual:X
- No
SOUND CONTROL
-
- User EQ – RCU / App
- Yes / Yes
- Night Time On/Off – RCU / App
- No / Yes
-
- Dynamic Rage On/Off – RCU / App
- No / Yes
- Auto Volume Leveler On/Off – RCU / App
- No / Yes
-
- Auto Sound Engine (Default)
- No
- SFX (Default)
- No
-
- AI Room Calibration (2 MIC In) – App
- Yes
FM RADIO SUPPORTED
-
- Type
- No
- FM / RDS
- No
-
- Frequency Range
- No
- Station Preset
- No
-
- Preset Memory / Erase
- No
- Information Display (RDS – PTY, PS, CT, RT)
- No
GOOGLE SUPPORTED
-
- Google Assistant Built In (Controller, 2 MIC In)
- No
- Works with the Google Assistant (Controllee)
- Yes
-
- Chromecast
- Yes
- Google Multi Zone (One Source → Multi Speaker)
- Yes
-
- Google Fast Pairing
- No
CONVENIENCE
-
- Remote App – iOS / Adroid OS
- Yes / Yes
- Smart Phone File Playback
- Yes
-
- EZ setup (BLE)
- Yes
- NSU / FOTA
- Yes / No
-
- Control with your TV Remote (Vol+/-, Mute)
- Yes
- Sound Sync – Bluetooth(LG TV) / Optical
- No / Yes
-
- Auto Power On/Off – Bluetooth (LGTV) / Optical
- No / Yes
- A/V Sunc (0~300ms) – RCU / APP
- No / Yes
-
- HDMI SIMPLINK
- Yes
- HDMI Audio Return Channel (ARC)
- Yes
-
- HDMI Audio Return Channel (e-ARC)
- Yes
- Woofer Level (-15 ~ 6dB, 1dB/Step)
- Yes
-
- Channel Level (-6 ~ 6dB, 1dB/Step) – Top / Center / Surround / Rear / Rear Top
- Yes / Yes / Yes / Yes / Yes
- Mute
- Yes
-
- Auto Dimmer
- Yes
- Sleep Timer – RCU / App
- No / Yes
-
- USB Host / Charge
- Yes / No
- Built-in Music
- Yes (2)
-
- Bluetooth Stand-By
- No
- Auto Detect (Bluetooth)
- Yes
AUDIO FORMAT(BITSTREAM)
-
- LPCM
- Yes
- Dolby Atmos
- Yes
-
- Dolby TrueHD
- Yes
- Dolby Digital Plus
- Yes
-
- Dolby Digital
- Yes
- DTS:X
- Yes
-
- DTS-HD Master Audio
- Yes
- DTS-HD High Resolution
- Yes
-
- DTS Digital Surround
- Yes
- AAC / AAC+
- Yes
FILE FORMAT
-
- FLAC – C4A / USB
- Yes / Yes
- OGG – C4A / USB
- Yes / Yes
-
- WAV – C4A / USB
- Yes / Yes
- MP3 – C4A / USB
- Yes / Yes
-
- WMA – C4A / USB
- No / No
- AAC – C4A / USB
- Yes / Yes
POWER_MAIN
-
- SMPS
- 100~240V, 50/60Hz
- Power Off Consumption
- 0.5W ↓
-
- Power Consumption
- 75W
POWER_REAR SPEAKER/WIRELESS BOX
-
- Type (SMPS)
- 100~240V, 50/60Hz
- Power Off Consumption
- 0.5W ↓
-
- Power Consumption
- 20W (L, R)
- Wireless Frequency
- 5GHz
POWER_SUBWOOFER
-
- Type (SMPS)
- 100~240V, 50/60Hz
- Power Off Consumption
- 0.5W ↓
-
- Power Consumption
- 38W
- Wireless Frequency
- 5GHz
ACCESSORY_MANUAL
-
- Web Manual (File)
- Yes (Full)
- Built-in Manual (Book) (Simple or Full)
- Yes (Simple)
-
- Wall Mount Guide
- Yes
- Wireless Speaker Reset Guide
- Yes
-
- Open Source – Yes (Full or Simple) / X
- Yes (Full)
- Warranty Card
- Yes
ACCESSORY_REMOTE CONTROL
-
- Model Name
- MA7 (`19 Modify)
- Battery(Size)
- AAA x 2
-
- Battery Built-in
- Yes
ACCESSORY_OTHERS
-
- Rear Speaker Cable
- No
- Optical Cable
- Yes
-
- Wall Mount Bracket
- Yes
- Cable Management (Tie)
- No
-
- Additioanl Foot
- No
- FM Antenna
- No
