FEATURES
- R32 Refrigerant
- Inverter – Energy Saving

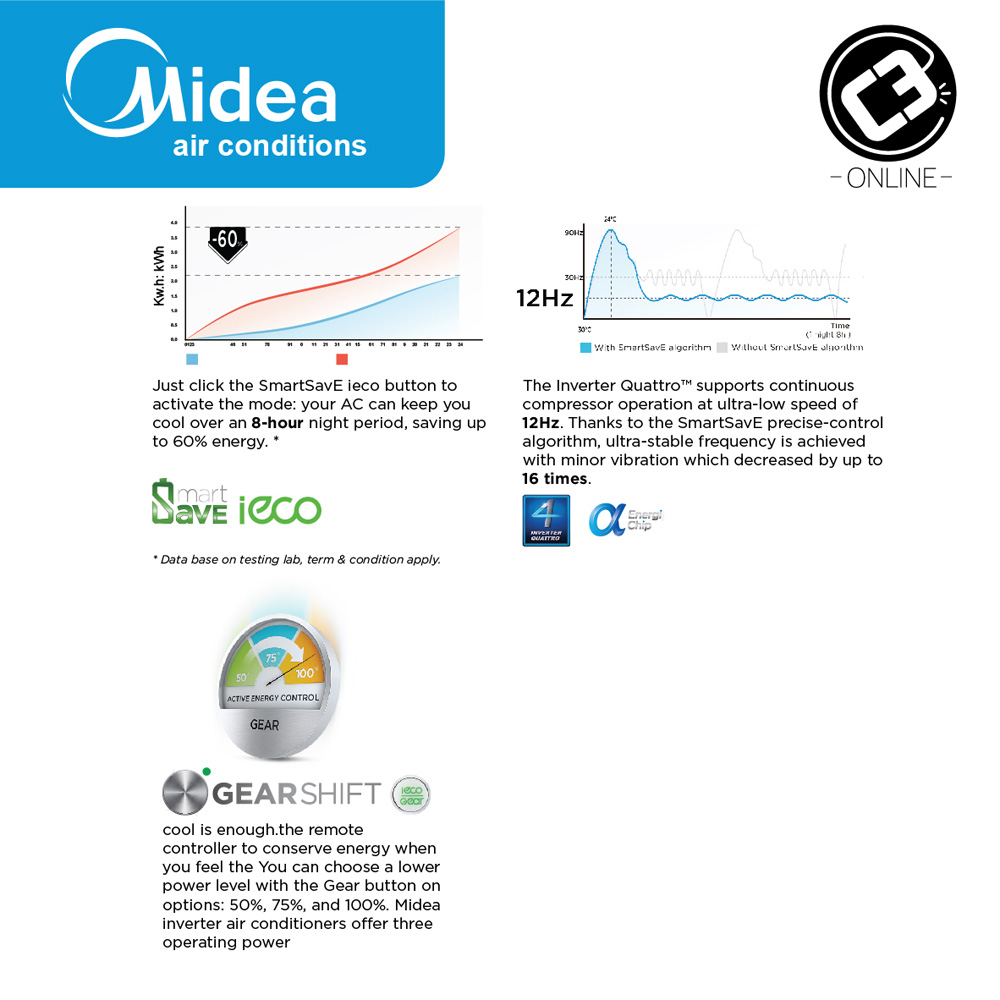

- iECO Mode
- Air Magic
- Flash Cooling
- Low Noise
- Smart Diagnosis

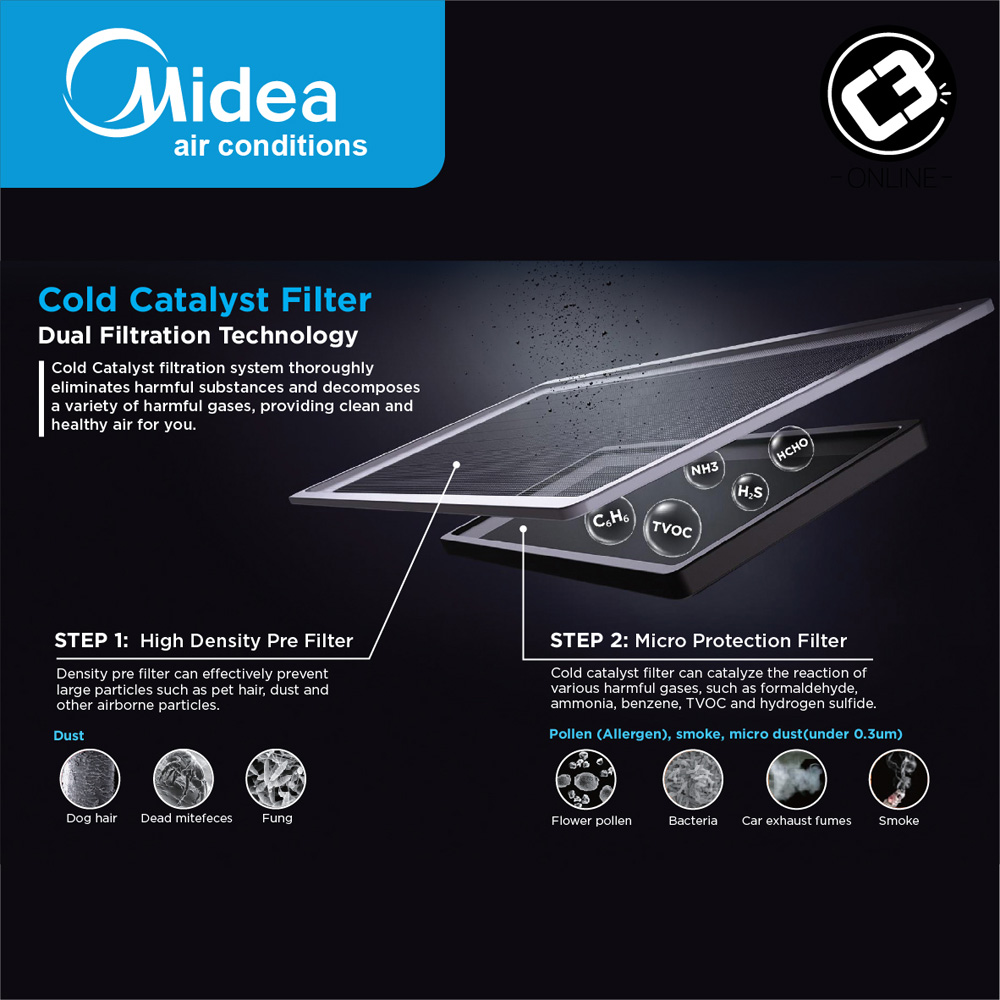

- Cold Catalyst Filter
- Thermo Static Technology
- Diamond Cabinet
- Follow Me
- WIFI Control (Optional)
- 2 years general warranty
- 5 years compressor warranty
OVERVIEW
Full specifications
1HP
-
Indoor unit
-
Indoor air flow (H)
580 (341) m3/h(cfm)
-
Indoor Sound level (H L)
39/34 dB(A)
-
Dimension(W*D*H)
835x208x295 mm
-
Packing (W*D*H)
905x355x290 mm
-
Net Gross weight
8.9/11.8 Kg
-
-
Outdoor unit
-
Outdoor Sound level
51 dB(A)
-
Dimension(W*D*H)
720x270x495 mm
-
Packing (W*D*H)
835x300x540 mm
-
Net Gross weight
21.7/23.6 Kg
-
Refrigerant Charge
R32/380g g
-
Design pressure
4.3/1.7 MPa
-
-
Refrigerant piping
-
Liquid side Gas side
Φ6.35/Φ.52(1/4″/3/8″) mm(inch)
-
Max. refrigerant pipe length
25 m
-
Max. difference in level
10 m
-
-
Misc
-
Cooling Capacity
10,000(4,981~11,075) Btu/h
-
Power consumption
780(344~913) W
-
Running current
3.4(1.50~3.97) A
-
CSPF(Cooling seasonal performance factor)
4.93 Wh/Wh
-
Energy Efficiency Star Rating
4
-
Power supply
220-240V~,50Hz,1Ph ((power supply to indoor)) V,Hz,Ph
-
Indoor-Outdoor connection wiring (Not included)
4×1.5 mm2
-
Power supply wiring (No Plug)
3×1.5 mm2
-
Thermostat type
Wireless Remote Control (Wifi control, Wire control optional)
-
1.5HP
-
Indoor unit
-
Indoor air flow (H)
600 (353) m3/h(cfm)
-
Indoor Sound level (H L)
39/33 dB(A)
-
Dimension(W*D*H)
835x208x295 mm
-
Packing (W*D*H)
905x355x290 mm
-
Net Gross weight
8.9/11.8 Kg
-
-
Outdoor unit
-
Outdoor Sound level
53 dB(A)
-
Dimension(W*D*H)
720x270x495 mm
-
Packing (W*D*H)
835x300x540 mm
-
Net Gross weight
21.7/23.7 Kg
-
Refrigerant Charge
R32/440g
-
Design pressure
4.3/1.7 MPa
-
-
Refrigerant piping
-
Liquid side Gas side
Φ6.35/Φ9.52(1/4″/3/8″) mm(inch)
-
Max. refrigerant pipe length
25 m
-
Max. difference in level
10 m
-
-
Misc
-
Cooling Capacity
12,000(5,865~13,231) Btu/h
-
Power consumption
1,030(408~1,217) W
-
Running current
4.48(1.77~5.29) A
-
CSPF(Cooling seasonal performance factor)
4.83 Wh/Wh
-
Energy Efficiency Star Rating
4
-
Power supply
220-240V~,50Hz,1Ph ((power supply to indoor)) V,Hz,Ph
-
Indoor-Outdoor connection wiring (Not included)
4×1.5 mm2
-
Power supply wiring (No Plug)
3×1.5 mm2
-
Thermostat type
Wireless Remote Control (Wifi control, Wire control optional)
-
2HP
-
Indoor unit
-
Indoor air flow (H)
845 (497) m3/h(cfm)
-
Indoor Sound level (H L)
43/33 dB(A)
-
Dimension(W*D*H)
969x241x320 mm
-
Packing (W*D*H)
1045x315x405 mm
-
Net Gross weight
11.9/15.2 Kg
-
-
Outdoor unit
-
Outdoor Sound level
56 dB(A)
-
Dimension(W*D*H)
765x303x555 mm
-
Packing (W*D*H)
887x337x610 mm
-
Net Gross weight
27.2/29.4 Kg
-
Refrigerant Charge
R32/650g
-
Design pressure
4.3/1.7 MPa
-
-
Refrigerant piping
-
Liquid side Gas side
Φ6.35/Φ12.7(1/4″/1/2″) mm(inch)
-
Max. refrigerant pipe length
25 m
-
Max. difference in level
10 m
-
-
General
-
Cooling Capacity
18,000(7,984~19,786) Btu/h
-
Power consumption
1,650(570~1,890) W
-
Running current
7.2(2.48~8.25) A
-
CSPF(Cooling seasonal performance factor)
4.87 Wh/Wh
-
Power supply
220-240V~,50Hz,1Ph ((power supply to indoor)) V,Hz,Ph
-
Indoor-Outdoor connection wiring (Not included)
4×2.5 mm2
-
Power supply wiring (No Plug)
3×2.5 mm2
-
Thermostat type
Wireless Remote Control (Wifi control, Wire control optional)
-
2.5HP
-
Indoor unit
-
Indoor air flow (H)
1,090(641) m3/h(cfm)
-
Indoor Sound level (H L)
46/35 dB(A)
-
Dimension(W*D*H)
1083x244x336 mm
-
Packing (W*D*H)
1155x415x315 mm
-
Net Gross weight
13.6/17.3 Kg
-
-
Outdoor unit
-
Outdoor Sound level
60 dB(A)
-
Dimension(W*D*H)
890x342x673 mm
-
Packing (W*D*H)
995x398x740 mm
-
Net Gross weight
43.9/46.9 Kg
-
Refrigerant Charge
R32/1450g
-
Design pressure
4.3/1.7 MPa
-
-
Refrigerant piping
-
Liquid side Gas side
Φ9.52/Φ15.9(3/8″/5/8″) mm(inch)
-
Max. refrigerant pipe length
30 m
-
Max. difference in level
20 m
-
-
Misc
-
Cooling Capacity
24,000(7,200~28,000) Btu/h
-
Power consumption
2,250(420~3,200) W
-
Running current
9.78(1.83-13.92) A
-
CSPF(Cooling seasonal performance factor)
5.19 Wh/Wh
-
Power supply
220-240V~,50Hz,1Ph (power supply to outdoor) V,Hz,Ph
-
Indoor-Outdoor connection wiring (Not included)
5×2.5 mm2
-
Power supply wiring (No Plug)
3×2.5 mm2
-
Thermostat type
Wireless Remote Control (Wifi control, Wire control optional)
-
