FV-20AL9VBH (8″)
FV-25AL9VBH (10″)
FV-25AL9VBH (10″)
Features
- New Front Louver Design For Neater Outlook And Better Safety
- New Blade Design To Improve Efficiency
- Ball-Bearing Motor For Smoother And Durable Operation
- Automatic Shutter
- Thermal Safety Fuse
- Suitable For Kitchens And Living Rooms

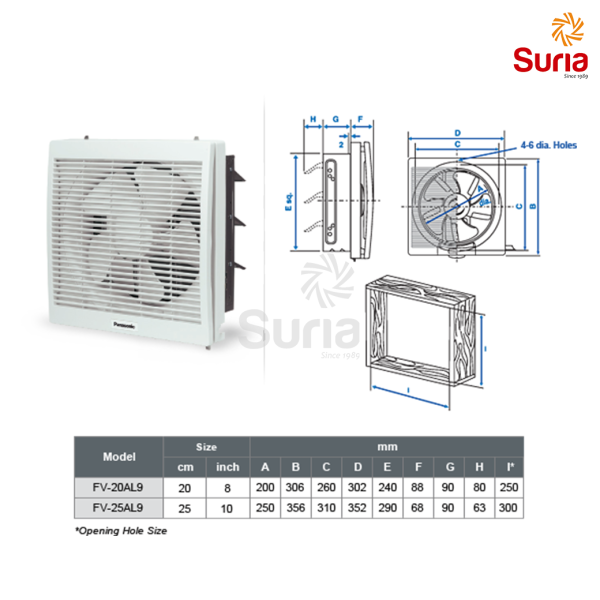

Installation Space (unit:mm)
| Model | FV-20AL9 | FV-25AL9 | |
|---|---|---|---|
| Size | cm | 20 | 25 |
| inch | 8 | 10 | |
| mm | A | 200 | 250 |
| B | 306 | 356 | |
| C | 260 | 310 | |
| D | 302 | 352 | |
| E | 240 | 290 | |
| F | 88 | 68 | |
| G | 90 | 90 | |
| H | 80 | 63 | |
| I* | 250 | 300 | |
Specification
| Model | 50Hz | FV-20AL9 | FV-25AL9 | |||
|---|---|---|---|---|---|---|
| Air Volume | cfm | cmh | 322 | 545 | 493 | 835 |
| Motor | W | 22 | 29 | |||
| Fan Speed | RPM | 1,210 | 1,055 | |||
| Weight | kg | 2.2 | 2.7 | |||
| Low Noise Level | dB | 40 | 43 | |||
| Low Electricity Consumption 24 Hours | RM | 0.12 | 0.15 | |||
