Quantum Matrix Technology -
Infinity One Design -
Neural Quantum Processor 4K -
Dolby Atmos®
Our most advanced 4K experience with high-class design
The pinnacle of ultra-fine light control
Quantum Matrix Technology
Evolution of Neo QLED comes with Quantum Matrix Technology, which precisely controls our exclusive new Quantum Mini LED. With accurate light control, you can enjoy great detail in both the darkest and brightest scenes.
Through the Quantum Mini LED and microlayer, the image of a surfer on the screen is displayed in detail in bright and dark areas, showing very clearly.
Absolute beauty found in minimalism
Infinity One Design
Don’t compromise between elegance for immersive viewing experience. This gorgeous Infinity One Design will take you to the next level with impossibly slim profile.

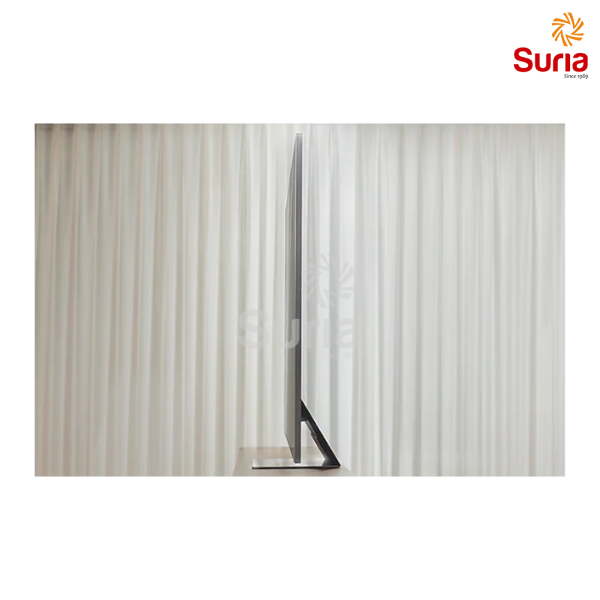

A super slim QLED emerges from a blue surface and turns 180 degrees. Then a side view of a QLED TV is on display.
AI-powered 4K picture completed by 20 neural networks
Neural Quantum Processor 4K
Neo QLED’s advanced multi-intelligent processor creates the best 4K viewing experience. Instead of one neural network to analyze visual data, Neo Quantum Processor 4K uses data generated from 20 neural networks to enhance every visual detail of your 4K content.
* Viewing experience may vary according to types of content and format.* Upscaling may not apply to PC connection and Game Mode.
Various elements of the tennis match including tennis ball, tennis court sidelines, tennis racket and audience are highlighted on screen. It shows the Samsung AI Neural Quantum Processor 4K’s ability to improve quality in real-time.
Dolby Atmos experience with top channel speakers
Dolby Atmos®
Samsung’s new top channel speakers deliver a next level Dolby Atmos experience that will immerse gamers inside the action with multi dimensional sound.
* Top channel is not available in 50/43″
The sound of raindrops fill the entire room as Dolby Atmos speakers send out sound.
Spectacular contrast just as the director intended
Quantum HDR 32x
Every nuance and detail comes to life with rich, accurate color and deeper contrast. The dynamic tone mapping of HDR10+ shifts color and contrast scene by scene, allowing you to appreciate even minor details.
* The range of Quantum HDR luminance is based on internal testing standards and subject to change according to viewing conditions or specifications.* QN90B 43/50′ : Quantum HDR 24x
Gaming
Exceptional gaming experience with 4K 144hz
Motion Xcelerator Turbo Pro
With innovative 4K 144hz feature on TV screen, Motion Xcelerator Turbo Pro delivers peak performance, creating consistently crisp visuals and blazing fast speeds.
Sound
A QLED TV is on top of a Soundbar. Q-symphony is turned on and simulated sound wave graphics from TV and Soundbar demonstrate Q Symphony technology as they play sound together.
TV and soundbar orchestrated in perfect harmony
Q-Symphony
Surround yourself with sound from TV and soundbar orchestrated in harmony. Q-Symphony uniquely allows TV and soundbar speakers to operate simultaneously for better surround effect without muting TV speakers.
Smart
The Smart Hub UI is on display and turns to Ambient Mode UI.
Discover your favorite content in one place
Smart Hub
Samsung’s new Smart Hub puts content curation and discovery front and center, so you spend less time searching and more time streaming movies, shows and other content you enjoy.
* Content services and recommendation may vary by regions.
* Agreement of the Smart Hub Terms and Conditions and Privacy Policy is required before use.
Specifications
-
ProductQLED
-
Series9
-
Display75″
-
Refresh Rate120Hz
Specifications Detail
Product
- QLED
Series
- 9
Display
- Screen Size75″
- Refresh Rate120Hz
- Resolution3,840 x 2,160
- Screen CurvatureN/A
- Anti ReflectionYes
Video
- Picture EngineNeural Quantum Processor 4K
- One Billion ColourYes
- PQI (Picture Quality Index)4700
- HDR (High Dynamic Range)Quantum HDR 32x
- AI StreamingN/A
- HDR 10+Certified(HDR10+ Adaptive & HDR10+ GAMING)
- AI UpscaleYes
- HLG (Hybrid Log Gamma)Yes
- ContrastQuantum MatrixTechnology
- Colour100% Colour Volume with Quantum Dot
- Viewing AngleUltra Viewing Angle
- Brightness/Colour DetectionBrightness/Color Detection
- Micro DimmingUltimate UHD Dimming Pro
- Contrast EnhancerReal Depth Enhancer
- Auto Motion PlusYes
- Film ModeYes
- Motion TechnologyMotion Xcelerator Turbo Pro
- Dynamic Refresh TechnologyN/A
- Clear MotionLED Clear Motion
- Noise ReductionYes
- Expert CalibrationYes
- Smart CalibrationBasic/Professional
- Filmmaker Mode (FMM)Yes
Audio
- Dolby AtmosYes
- Dolby Digital PlusMS12 5.1ch
- Active Voice AmplifierYes
- Adaptive SoundAdaptive Sound+
- Object Tracking SoundOTS+
- Q-SymphonyYes
- Audio Pre-selection DescriptorN/A
- Hole Array SpeakerN/A
- Sound Output (RMS)70W
- Speaker Type4.2.2CH
- WooferYes
- Multiroom LinkYes
- Bluetooth AudioYes
- Dual Audio Support (Bluetooth)Yes
- Buds Auto SwitchN/A
Smart Service
- Samsung SMART TVSmart
- Operating SystemTizen™
- BixbyUS English, UK English, India English, Korean, French, German, Italian, Spanish, BR Portuguese (features vary by language)
- Voice InteractionYes
- Far-Field Voice InteractionYes
- Multi Voice AssistantN/A
- Google Assistant Built-inN/A
- Works with Google AssistantN/A
- Works With AlexaN/A
- TV PlusN/A
- Web BrowserYes
- SmartThings App SupportYes
- SmartThingsYes
- Samsung HealthN/A
- Universal GuideN/A
- Media HomeYes
Smart Feature
- TV to Mobile – MirroringYes
- Mobile to TV – Mirroring, DLNAYes
- NFC on TVN/A
- TV Initiate MirroringYes
- Tap ViewYes
- Video CommunicationGoogle Duo
- Multi-Viewupto 2 videos
- Music WallYes
- Mobile Camera SupportYes
- 360 Video PlayerYes
- 360 Camera SupportYes
- Easy SetupYes
- App CastingYes
- Chat TogethterN/A
- Watch TogetherN/A
- Bluetooth Low EnergyYes
- WiFi DirectYes
- TV Sound to MobileYes
- Sound MirroringYes
- AmbienceAmbient Mode+
- Wireless DexYes
- Cloud ServiceMicrosoft 365
Differentiation
- Tune StationN/A
- Auto Hotspot ConnectN/A
- S-ShareN/A
- Auto Data BackupN/A
- Dongle Compatibility (3G / LTE / WiFi)N/A
- Analog Clean ViewYes
- Triple ProtectionN/A
Game Feature
- Auto Game Mode (ALLM)Yes
- Game Motion PlusYes
- Dynamic Black EQYes
- Surround SoundYes
- Super Ultra Wide Game ViewYes
- Mini Map ZoomYes
- FreesyncFreeSync Premium Pro
- G-SYNCN/A
- Light-syncN/A
- HGiGYes
- Gaming HubN/A
Tuner/Broadcasting
- Digital BroadcastingDVB-T2
- Analog TunerYes
- 2 TunerN/A
- CI (Common Interface)N/A
- Data BroadcastingN/A
- TV KeyYes
Connectivity
- HDMI4
- USB3
- HDMI (High Frame Rate)4K 144Hz (for HDMI 1/2/3/4)
- Component In (Y/Pb/Pr)N/A
- Composite In (AV)N/A
- USB-C (Camera Only)1
- Ethernet (LAN)Yes
- Audio Out (Mini Jack)N/A
- Digital Audio Out (Optical)1
- RF In (Terrestrial / Cable input)1/1(Common Use for Terrestrial)/0
- Ex-Link ( RS-232C )N/A
- CI SlotN/A
- HDMI A / Return Ch. SupportYes
- eARCYes (HDMI 3)
- HDMI Quick SwitchYes
- Wireless LAN Built-inYes (WiFi5)
- BluetoothYes (BT5.2)
- Anynet+ (HDMI-CEC)Yes
Design
- DesignInfinity One
- Bezel Type4 Bezel-less
- Slim TypeUltra Slim
- Front ColourBRIGHT SILVER
- Speaker Jersey ColourN/A
- Light Effect (Deco)N/A
- Stand TypeCONNECTED STAND
- Stand ColourBRIGHT SILVER
Additional Feature
- Auto RotationN/A
- 9:16 Screen SupportN/A
- Art Mode (The Frame)N/A
- Motion Detection (Frame)N/A
- Auto Channel SearchYes
- Caption (Subtitle)Yes
- Connect Share™ (HDD)Yes
- ConnectShare™ (USB 2.0)Yes
- EPGYes
- Extended PVRYes
- OSD LanguageLocal Languages
- Picture-In-PictureN/A
- BT HID Built-inYes
- USB HID SupportYes
- Teletext (TTX)Yes
- Time ShiftYes
- One Connect BoxOne Connect (Y22 4K)
- V-ChipN/A
- IPv6 SupportYes
- MBR SupportYes
Accessibility
- Accessibillity – Voice GuideUK English, China Chinese
- Accessibility – Learn TV Remote / Learn Menu ScreenUK English
- Accessibility – OthersEnlarge / High Contrast / Multi-output Audio / SeeColors / Color Inversion / Grayscale / Sign Language Zoom / Slow Button Repeat / Graphic Zoom / Picture Off
- Sign Language GuideN/A
- Auto Caption PositionN/A
Power & Eco Solution
- Eco SensorYes
- Power SupplyAC100-240V 50/60Hz
- Power Consumption (Max)195 W
- Energy Efficiency ClassN/A
- Power Consumption (Stand-by)N/A
- Power Consumption (Energy Saving Mode)N/A
- Power Consumption (Typical)N/A
- Yearly Power Consumption (EU standard)N/A
- Auto Power OffYes
- Auto Power SavingYes

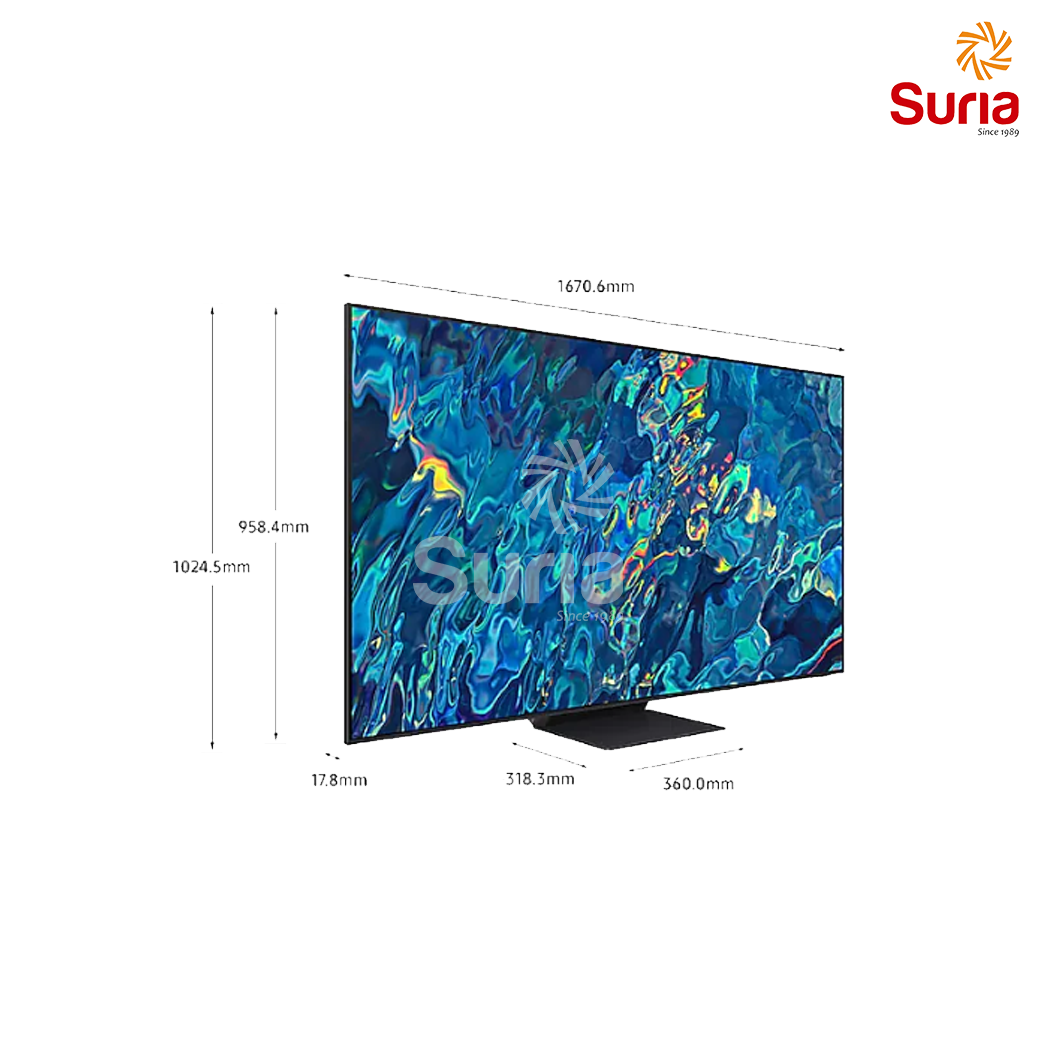

Dimension
- Package Size (WxHxD)1872 x 1144 x 196 mm
- Set Size with Stand (WxHxD)1670.6 x 1024.5 x 318.3 mm
- Set Size without Stand (WxHxD)1670.6 x 958.4 x 17.8 mm
- Stand (Basic) (WxD)360.0 x 318.3 mm
- Stand (Minimum) (WxD)N/A
- VESA Spec400 x 400 mm
Weight
- Package Weight54.5 kg
- Set Weight with Stand41.3 kg
- Set Weight without Stand31.3 kg
Accessory
- Remote Controller ModelTM2280E
- Batteries (for Remote Control)N/A
- Samsung Smart Control (Included)Yes
- No Gap Wall-mount (Y21 VESA)Yes
- Optional Stand Support (Y20 Studio)N/A
- Optional One Connect Cable SupportYes
- Mini Wall Mount SupportN/A
- Vesa Wall Mount SupportYes
- Customizable Frame Support (The Frame)N/A
- Auto-Rotation Accessory SupportN/A
- User ManualYes
- Full Motion Slim Wall Mount (Y22)Yes
- E-ManualYes
- Webcam SupportYes
- ANT-CableN/A
- Power CableYes
- HDMI CableN/A
- Slim Gender CableN/A
