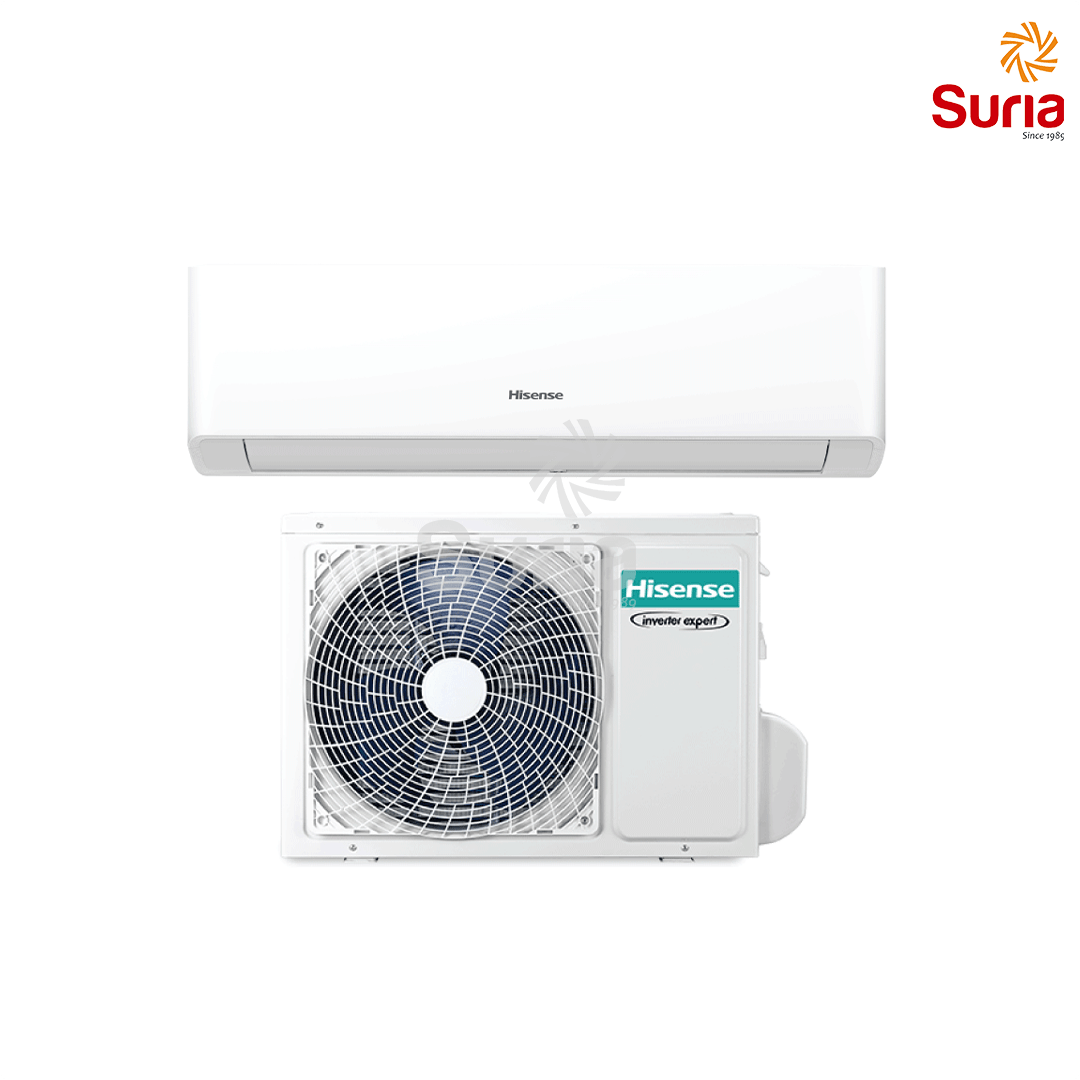

Hisense 1.0hp R32 Inverter Air Conditioner AI10KAGS
Ratings
Model No. AI25KAGS AI20KAGS AI13KAGS AI10KAGS
Type Inverter Inverter Inverter Inverter
HP 2.5HP 2.0HP 1.5HP 1.0HP
Cooling Capacity (Btu/h) 22,000(5872~24484) 17,500(3841~18042) 12,000(3841~12300) 9,200(1610~9877)
Cooling Capacity (W) 6,450(1721~7176) 5,150(1308~5288) 3,520(1126~3606) 2,700(472~2895)
Rated Input-Cooling (W) 2,150(474~2430) 1,800(351~1946) 1,180(362~1386) 820(202~972)
Air Circulation (m3/h) 1,100 950 580 550
EER for Cooling W/W 4.10 4.30 4.60 4.60
Energy Class Cooling 4 Stars 4 Stars 4 Stars 4 Stars
Average Energy Consumption/Year kWh 2,358 2,074 1,262 969
Refrigerant Type R32 R32 R32 R32
Refrigerant charge volume g 950 640 480 390
Indoor Unit Noise Level (Sound Pressure) High(dB (A)) 48 44 38 38
Low(dB (A)) 39 36 32 32
Outdoor Unit Noise Level (Sound Pressure) dB (A) 56 54 52 49
Power Supply
Model No. AI25KAGS AI20KAGS AI13KAGS AI10KAGS
Voltage, Frequency V 220-240V~,50Hz 220-240V~,50Hz 220-240V~,50Hz 220-240V~,50Hz
Phase 1P 1P 1P 1P
Rated Current Cooling (A) 9.7 8.1 7.3 4.8
Maximal Pipe Length m 25 25 20 20
Maximal Heights’ Interval m 10 10 10 10
LRA A – – – –
Degree of Protection (IN/OUT) IP IPX0 / IPX4 IPX0 / IPX4 IPX0 / IPX4 IPX0 / IPX4
System
Model No. AI25KAGS AI20KAGS AI13KAGS AI10KAGS
Compressor Type Rotary Rotary Rotary Rotary
Pipe Diameter
Model No. AI25KAGS AI20KAGS AI13KAGS AI10KAGS
Liquid Pipe (inch) 3/8 1/4 1/4 1/4
Gas Pipe (inch) 5/8 1/2 3/8 3/8
Features (General)
Model No. AI25KAGS AI20KAGS AI13KAGS AI10KAGS
Super Quiet (19 dBA) – – – –
Display LED LED LED LED
LCD Wireless Remote Controller Yes Yes Yes Yes
Removable and Washable Panel Yes Yes Yes Yes
Washable PP Filter Yes Yes Yes Yes
24 Hours Timer Yes Yes Yes Yes
3 Speed and Auto Indoor Fan Control Yes Yes Yes Yes
Vertical Auto Swing Louver Yes Yes Yes Yes
Horizontal Auto Swing Louver Yes Yes Yes Yes
Sleep Operation Yes Yes Yes Yes
Smart Function Yes Yes Yes Yes
Super Function Yes Yes Yes Yes
Auto Restart Yes Yes Yes Yes
Dimmer Yes Yes Yes Yes
2 Ways Draining Yes, Left and Right Yes, Left and Right Yes, Left and Right Yes, Left and Right
Ionizer Filter Yes Yes Yes Yes
Other Information
Model No. AI25KAGS AI20KAGS AI13KAGS AI10KAGS
Net Dimensions Indoor Unit 1008*325*217 896*300*214 798*256*191 798*256*191
WxHxD (mm) Outdoor Unit 810*585*280 715*540*240 660*482*240 660*482*240
Gross Weight Indoor Unit 13.5 12.0 9.5 9.5
KG Outdoor Unit 36.0 27.5 25.0 22.5
Net Weight Indoor Unit 11.0 10.0 7.8 7.7
KG Outdoor Unit 33.0 24.0 20.5 20.5
