Hisense 2HP R32 Non Inverter Air Conditioner AN20DBG

Ratings
Model No. AN25DBG AN20DBG AN13DBG AN10DBG
Type Non-Inverter Non-Inverter Non-Inverter Non-Inverter
HP 2.5HP 2.0HP 1.5HP 1.0HP
Cooling Capacity (Btu/h) 22,000 18,000 12,283 9,500
Rated Input-Cooling (W) 2,186 1,730 1,100 850
Air Circulation (m3/h) 1,200 950 660 600
EER for Cooling W/W 2.95 3.05 3.27 3.28
Energy Class Cooling 3 Stars 3 Stars 3 Stars 3 Stars
Average Energy Consumption/Year kWh 3,325 2,675 1,721 1,357
Refrigerant Type R32 R32 R32 R32
Refrigerant charge volume g 1,250 1,000 550 410
Indoor Unit Noise Level (Sound Pressure) High(dB (A)) 45 45 39 38
Low(dB (A)) 36 36 34 32
Outdoor Unit Noise Level (Sound Pressure) dB (A) 56 56 51 51
Power Supply
Model No. AN25DBG AN20DBG AN13DBG AN10DBG
Voltage, Frequency V 220-240V~,50Hz 220-240V~,50Hz 220-240V~,50Hz 220-240V~,50Hz
Phase 1P 1P 1P 1P
Rated Current Cooling (A) 9.2 7.5 4.8 3.7
Maximal Pipe Length m 25 25 25 25
Maximal Heights’ Interval m 10 10 10 10
LRA A 48 38 23.5 21
Degree of Protection (IN/OUT) IP IPX0 / IPX4 IPX0 / IPX4 IPX0 / IPX4 IPX0 / IPX4
System
Model No. AN25DBG AN20DBG AN13DBG AN10DBG
Compressor Type Rotary Rotary Rotary Rotary
Pipe Diameter
Model No. AN25DBG AN20DBG AN13DBG AN10DBG
Liquid Pipe (inch) 3/8 1/4 1/4 1/4
Gas Pipe (inch) 5/8 1/2 1/2 3/8
Features (General)
Model No. AN25DBG AN20DBG AN13DBG AN10DBG
Super Quiet (19 dBA) – – – –
Display LED LED LED LED
LCD Wireless Remote Controller Yes Yes Yes Yes
Removable and Washable Panel Yes Yes Yes Yes
Washable PP Filter Yes Yes Yes Yes
24 Hours Timer Yes Yes Yes Yes
3 Speed and Auto Indoor Fan Control Yes Yes Yes Yes
Vertical Auto Swing Louver Yes Yes Yes Yes
Horizontal Auto Swing Louver – – – –
Sleep Operation Yes Yes Yes Yes
Smart Function Yes Yes Yes Yes
Super Function Yes Yes Yes Yes
Auto Restart Yes Yes Yes Yes
Dimmer Yes Yes Yes Yes
2 Ways Draining Yes, Left and Right Yes, Left and Right Yes, Left and Right Yes, Left and Right
Ionizer Filter Yes Yes Yes Yes
Other Information
Model No. AN25DBG AN20DBG AN13DBG AN10DBG

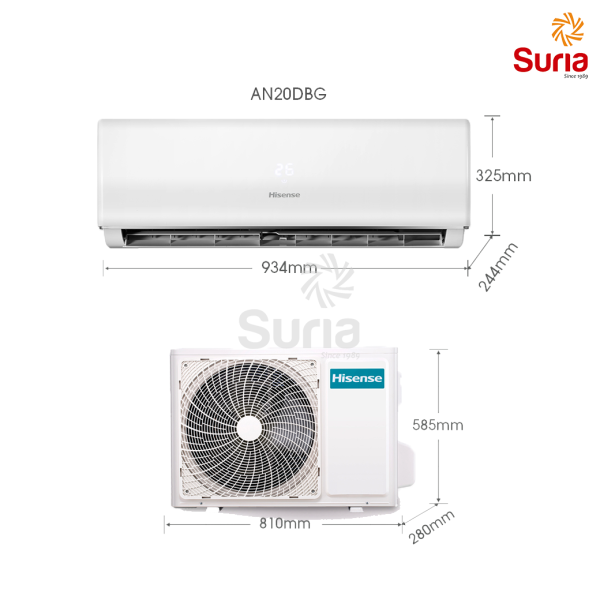

Net Dimensions Indoor Unit 1100*325*244 934*325*244 835*280*220 835*280*220
WxHxD (mm) Outdoor Unit 860*650*310 810*585*280 715*486*240 660*482*240
Gross Weight Indoor Unit 17.0 14.5 11.0 11.0
KG Outdoor Unit 49.0 42.5 28.5 26.0
Net Weight Indoor Unit 14.5 12.5 8.5 8.5
KG Outdoor Unit 45.0 37.5 26.0 24.0
